Rigging

If we were going for a still picture, this would be enough, but we want Gus to move! The next step is to give him a skeleton, or Armature, which will move him. This is the fine art of rigging.

Our Gus will have a very simple rigging, four limbs, two arms and two legs, but no joints (elbows or knees), not even feet or hands.

Set the cursor where the shoulder will be, press SPACE>>ADD>>Armature. A romboidal object will appear, stretching from cursor to mouse pointer. This is a bone of the armature system. Place its other end in Gus' hand (Figure 49) with LMB. The bone will be fixed and a new bone will be created from the end point of the previous, ready to build a bone chain. We don't need other bones right now, so press ESC to exit.

Figure 49. Adding the first bone, an elbowless arm.

Stay in EditMode, move the cursor where the hip joint will be and add a new bone (SPACE>>ADD>>Armature) down to the knee. Press LMB a new bone automatically is there. Stretch this down to the foot (Figure 50).

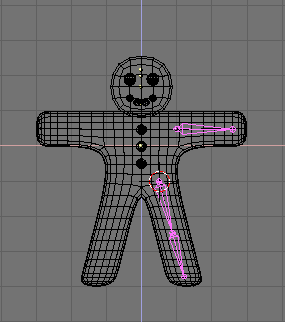

Figure 50. Adding the second bone and third bones, a leg bone chain.

TipBone position


The bones we are adding will deform Gus body mesh. To have neat result it is very important that you try to place the bone joints as in the figures.

Now place the cursor in the center and select all bones with AKEY, duplicate them with Shift-D and Flip them as you did for the meshes with XKEY (Figure 51).

Figure 51. Complete armature after duplicating and flipping.

If you take a look at the Edit Buttons window (Figure 9 in the Section called Building the body) it will be very different now, and, once you've selected all the bones (AKEY), will exhibit the Armature buttons (Figure 52).

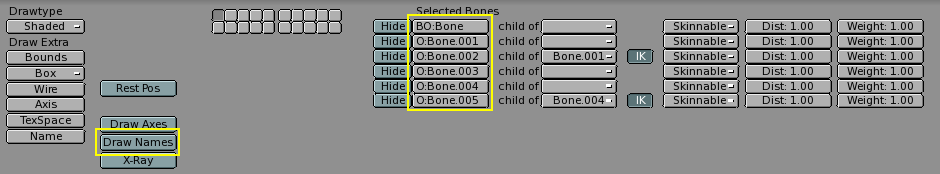

Figure 52. The Edit Buttons window for an armature.

First press the Draw Names button to see the names of the bones, then, SHIFT-LMB on the names in the Edit Button window (Figure 52) to change them to something appropriate Like Arm.R, Arm.L, UpLeg.R, LoLeg.R UpLeg.L, LoLeg.L. Exit from EditMode (TAB).

TipNaming Bones


It is very important to name bones with trailing '.L' or '.R' to distinguish between left and right because this way the Action editor will be able to automatically 'flip' your poses.
