The InfoWindow



As in all Blender window headers, the first button allows you to configure the window type.

Menus. The hide/shows the menus.

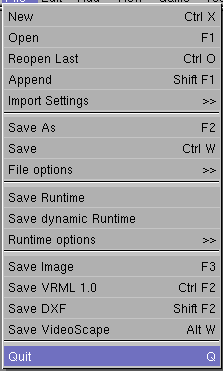

With the menus you can easily access common commands, like saving and loading.

The menu entries are very common and doing the things they are labeled. A special thing is the Tools menu:

With Pack Data you can pack Images, Fonts and Sounds into the Blend-file, allowing to distribute easily your files as a single file. As a sign that your file is packed, a little icon of a parcel appears in the menu-bar.

Unpack Data into current dir unpacks into the current directory on your harddisk. It creates directories for textures, sounds and fonts there.

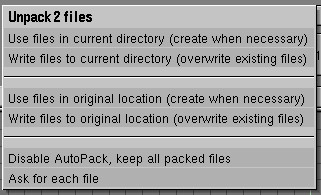

The Advanced Unpack menu gives you more control to unpack files. The entries are self-explaining.

Screen Browse.

Allows you to select a different Screen from a list. The option "Add New" creates an exact copy of the current Screen. The copy is 'invisble': only the name on the adjacent button changes. HotKey for next or previous Screen: ALT+ARROWLEFT or ALT+ARROWRIGHT

SCR: Assign a new and unique name to the current Screen and then adds the new name to the list in alphabetical order.

Delete Screen (But). Delete Current Screen? The current Screen is deleted and released.

Scene Browse.

Select a different scene from a list. This button is blocked in EditMode.

Add New displays a PopupMenu with four options:

  • "Empty": create a completely empty scene.

  • "Link Objects": all Objects are linked to the new scene. The layer and selection flags of the Objects can be configured differently for each Scene.

  • "Link ObData": duplicates Objects only. ObData linked to the Objects, e.g. Mesh and Curve, are not duplicated.

  • "Full Copy": everything is duplicated.

SCE: Assigns a new and unique name to the current Scene and places the new name in the list in alphabetical order.

Delete Scene (But). "OK? Delete Current Scene". This button deletes and releases the current Scene without deleting Objects. Objects without users are not written to a file.

The information text.

The standard text is:

  • the location at which the software can be obtained.

  • 2.28: the version of Blender. This manual is applicable to the V2.x series only.

  • Ve: 4 Fa: 1: the number of vertices and faces in the current 3DWindow. If in doubt, use NUMPAD-9 to count the vertices and faces again.

  • Ob: 2-1: the number of total Objects and of selected Objects in the current 3DWindow.

  • La: 0: the number of lamps in the current 3Dwindow.

  • Mem: 2.03M: the amount of memory in use in Megabytes, not including fragmented memory.

  • Plane (or similar): the name of the active Object.

Changes in EditMode:

  • Ve: 0-4 Fa: 0-1: The first numeric value is the number of selected vertices, the second is the total number of vertices. The numeric values for the second variable apply to faces and have the same significance.

  • Plane (or similar): the name of the active Object.

During and after rendering: The values for the totals are changed to reflect the rendered picture. These values may be different from the totals displayed in the 3DWindow.

  • Time: 00.01.56 (00:44): the pure rendering time for the last picture rendered in minutes/seconds/hundredths of a second and the actual extra rendering time in seconds/hundredths of a second. Excessive swap time or poor file accessibility can cause high 'extra rendering time'.

The Maximize button. Clicking the Maximize button will switch blenter in/out of full screen mode.

The Toolbox button . Clicking the Toolbox icon will pop up the Toolbox, like SPACE does.

The Info Buttons

The Info Window allows you to configure personal settings. These settings are automatically loaded from the file $HOME/.B.blend each time Blender is started. Personal settings cannot be written to a file other than .B.blend. The HotKey CTRL-U can be used to overwrite the file .B.blend.

The bottom line of buttons selects the various settings:

View and Controls:

  • ToolTips - Switch Tooltips on and off.

  • ObjectInfo - Shows Object name and frame in 3D viewport

  • Grab,Rotate,Scale - Makes relevant action take place in steps, as if CTRL were pressed.

  • Clobal Scene - Forces the current scene to be displayed in all windows

  • Trackball, Turnable - Sets the behaviour of 3D window rotation method

  • Rotate View, Pan View- Sets MMB functionality.

  • Emulate 3D buttons - Makes ALT LMB equivalent to MMB

  • Scroll Lines: - Controls wheel mouse scrolling

  • Invert Wheel Zoom - toggles the Wheel directio to zoom in-zoom out

By default, the following limitors apply to grabbing rotating and scaling (press the keys after click and hold with the mouse):

  • (no key): fluid change

  • SHIFT: finer control

  • CTRL: large grid steps

  • SHIFT-CTRL: small grid steps

The following alternatives can also be used (when the corresponding toggle button is ON):

  • (no key): large grid steps

  • SHIFT: small grid steps

  • CTRL: fluid change

  • SHIFT-CTRL: finer control

Edit Methods:

  • ObData, Object - Toggles where Material data is linked to.

  • Action, Object - ????

  • Duplicate with object: - This series of button specifies which data is really duplicated, and which is merely linked, when a object is duplicated (SHIFT D

One of Blender's most advanced features is its use of object-oriented functions. Blender allows you to reuse (i.e. link) data blocks to construct compact and efficient structures.

When one of these buttons is pressed, the indicated DataBlock is duplicated instead of linked when using SHIFT-D. The ALT-D command always makes a copy of the selected Objects with all other data linked.

The most commonly use of links is when activating the Duplicate commands: ALT+D create a copy of the selected Objects, reusing (i.e. linking to) all other data, including Meshes and Materials. SHIFT+D create a copy of the selected Objects, using these button settings to determine whether links to other data are created or duplicates of other data are created.

Language and Fonts:

  • International Fonts - Toggles the usage of international, antialiased, fonts.

  • Select font - Allows for font customization

  • Font size: - Sets UI font size.

  • Language: - Sets the language.

  • Tooltips, Buttons, Toolbox - Sets which part of the UI is to be translated.

Auto Save:

Blender can save 'temp' files at regular intervals as a temporary backup or as extra protection against disasters. The files are identical to Blender files saved in the normal manner. If Blender is in EditMode when this function is used, only the original Data are saved, without saving the Data with which you are working. Blender saves 'temp' files in the specified 'temp' directory with the name "<process-id>.blend". This results in unique names for all 'temp' files, allowing multiple Blenders to simultaneously write 'temp' files on the same computer. When Blender is closed down, the file is renamed "quit.blend", making it easy to retrieve work in progress if the user inadvertently quits Blender. Blender writes files very quickly, which means that waiting time is kept to a minimum, allowing the user to continue working within a split second after saving files of 1-2 Mb.

  • Auto Save Temp Files - Enable saving temporary .blend files.

  • Minutes: - Time in minutes between auto saving

  • Open recent - Opens last saved temporary file

  • Versions - Sets how many .blend# files are to be kept as history every time a regular save is performed.

    If 'Versions' has a value of '2' and the file 'rt.blend' is being written:

    • rt.blend2 is deleted

    • rt.blend1 is renamed to rt.blend2

    • rt.blend is renamed to rt.blend1

    • rt.blend is rewritten.

File Paths:

Defines all the directory where items are to be looked for/ saved by default, their name is self-explanatory.

System and OpenGL:

  • Enable all Codecs - Enables all available codecs for rendering.

  • Mxing buffer: - Sets the dimension of the Audio mixing buffer

  • Emulate Numpad - Forces regular 0 to 9 keys to act as NumPad 0-9 keys (if you are on a laptop...)

  • Disable Caps Lock - Disables caps lock when entering Text.

  • Disable Sound - Disables sound from being played.

  • File Filter Extensions - Makes only file with extension to appear in image select windows

  • Mipmaps - Turns OpenGL MipMapping ON/OFF

  • VertexArrays - Turns OpenGL vertex arrays to ON/OFF
